Din 471 Кольцо Стопорное Наружное Для Вала
Стандарт DIN 471 соответствует ГОСТ 13942.

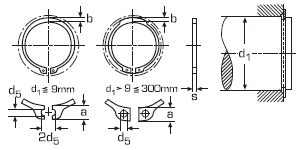

Описание: DIN 471 Кольцо стопорное наружное для вала, стальное, эксцентрическое, нормальное исполнение, форма А.
Материалы:
- Сталь: сталь пружинная
- Сталь с покрытием: оксидирование, фосфатирование, гальваническая оцинковка
- Нержавеющая сталь: А2
| d1 | а макс. | b | d5 мин. | s |
| 4 | 2.2 | 0.9 | 1 | 0.4 |
| 5 | 2.5 | 1.1 | 1 | 0.6 |
| 6 | 2.7 | 1.3 | 1.2 | 0.7 |
| 7 | 3.1 | 1.4 | 1.2 | 0.8 |
| 8 | 3.2 | 1.5 | 1.2 | 0.8 |
| 9 | 3.3 | 1.7 | 1.2 | 1 |
| 10 | 3.3 | 1.8 | 1.5 | 1 |
| 11 | 3.3 | 1.8 | 1.5 | 1 |
| 12 | 3.3 | 1.8 | 1.7 | 1 |
| 13 | 3.4 | 2 | 1.7 | 1 |
| 14 | 3.5 | 2.1 | 1.7 | 1 |
| 15 | 3.6 | 2.2 | 1.7 | 1 |
| 16 | 3.7 | 2.2 | 1.7 | 1 |
| 17 | 3.8 | 2.3 | 1.7 | 1 |
| 18 | 3.9 | 2.4 | 2 | 1.2 |
| 19 | 3.9 | 2.5 | 2 | 1.2 |
| 20 | 4 | 2.6 | 2 | 1.2 |
| 22 | 4.2 | 2.8 | 2 | 1.2 |
| 23 | 4.3 | 2.9 | 2 | 1.2 |
| 24 | 4.4 | 3 | 2 | 1.2 |
| 25 | 4.4 | 3 | 2 | 1.2 |
| 26 | 4.5 | 3.1 | 2 | 1.2 |
| 27 | 4.6 | 3.1 | 2 | 1.2 |
| 28 | 4.7 | 3.2 | 2 | 1.5 |
| 29 | 4.8 | 3.4 | 2 | 1.5 |
| 30 | 5 | 3.5 | 2 | 1.5 |
| 32 | 5.2 | 3.6 | 2.5 | 1.5 |
| 34 | 5.4 | 3.8 | 2.5 | 1.5 |
| 35 | 5.6 | 3.9 | 2.5 | 1.5 |
| 36 | 5.6 | 4 | 2.5 | 1.75 |
| 38 | 5.8 | 4.2 | 2.5 | 1.75 |
| 39 | 5.9 | 4.3 | 2.5 | 1.75 |
| 40 | 6 | 4.4 | 2.5 | 1.75 |
| 42 | 6.5 | 4.5 | 2.5 | 1.75 |
| 45 | 6.7 | 4.7 | 2.5 | 1.75 |
| 48 | 6.9 | 5 | 2.5 | 1.75 |
| 50 | 6.9 | 5.1 | 2.5 | 2 |
| 52 | 7 | 5.2 | 2.5 | 2 |
| 55 | 7.2 | 5.4 | 2.5 | 2 |
| 60 | 7.4 | 5.8 | 2.5 | 2 |
| 65 | 7.8 | 6.3 | 3 | 2.5 |
| 68 | 8 | 6.5 | 3 | 2.5 |
| 70 | 8.1 | 6.6 | 3 | 2.5 |
| 75 | 8.4 | 7 | 3 | 2.5 |
| 80 | 8.6 | 7.4 | 3 | 2.5 |
| 85 | 8.7 | 7.8 | 3.5 | 3 |
| 90 | 8.8 | 8.2 | 3.5 | 3 |
| 95 | 9.4 | 8.6 | 3.5 | 3 |
| 100 | 9.6 | 9 | 3.5 | 3 |
| 110 | 10.1 | 9.6 | 3.5 | 4 |
| 120 | 11 | 10.2 | 3.5 | 4 |
| 130 | 11.6 | 10.7 | 4 | 4 |
| 140 | 12 | 11.2 | 4 | 4 |
| d1 | а макс. | b | d5 мин. | s |
